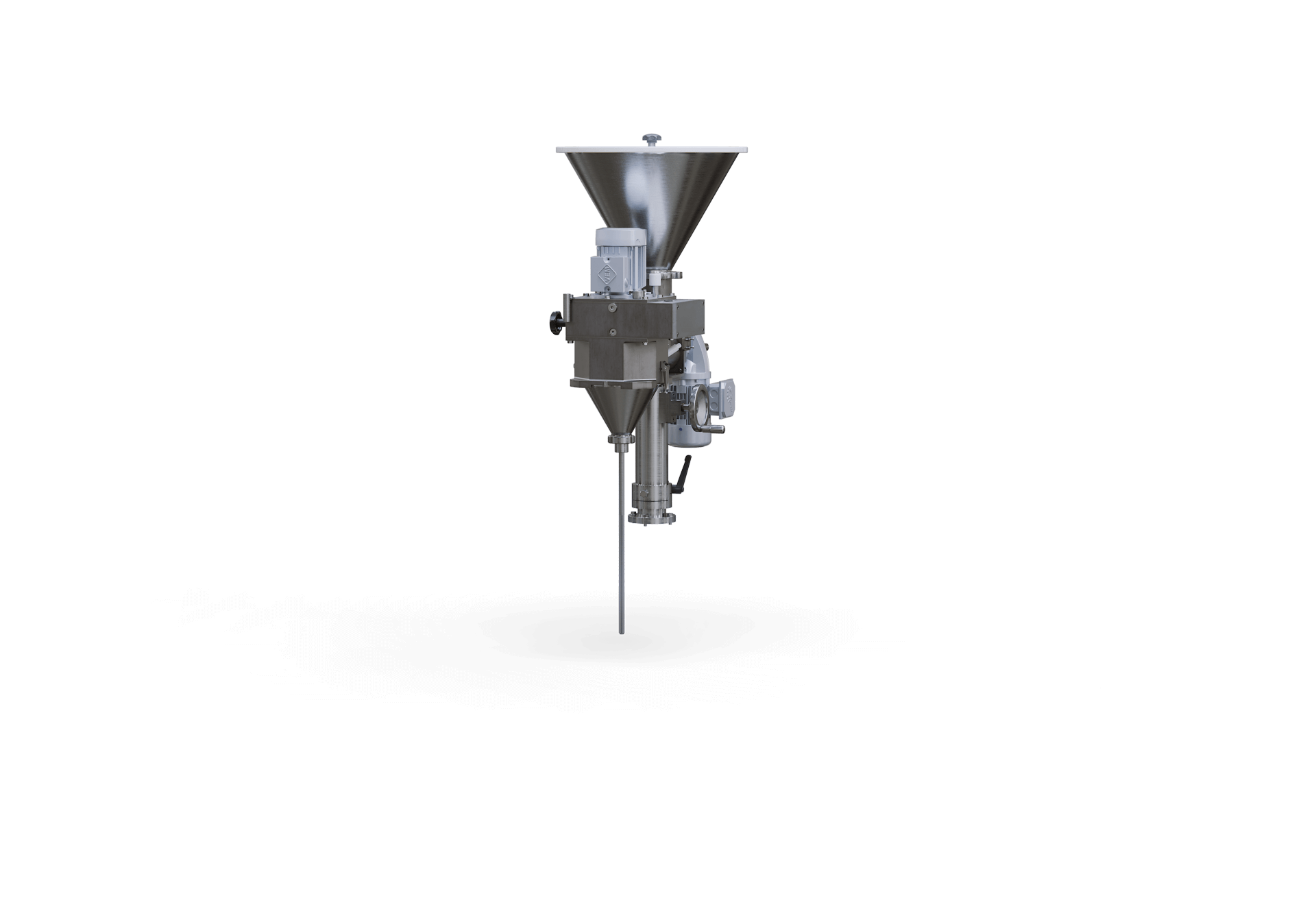

Vertical, micro,
auger dosing unit
SD330
For dosing powders and fine granules
from 0.5 ml to 1000 ml.
Range of products
Operativ Range
Description of operation
Performance characteristics
Technical details
Options
Range of products
with product examples
Powder
0,5 – 1000 ml
e.g. pharmaceutical products, soup powder, milk powder, cappuccino, coffee whitener, baker's yeast,...
Granules
0,5 – 1000 ml
e.g. pharmaceutical products, salt, sugar, spices, instant coffee, detergents, stain remover, seeds...
Operativ Range
Practical application
Pharma
Cosmetics
food
chemistry
Functional
description
How the machine works
The auger dosing unit type SD-330 is a vertically operating auger dosing unit for dosing powders and granulates (also poorly flowing and dusty).
The dosing unit is driven by an electric motor, the drive shaft of which is directly connected to the dosing screw as an extension, and an agitator is also driven by this main shaft via a reduction gearbox, which ensures that the dosing screw is filled evenly. The variable speed of the drive as well as the start and stop process are achieved by a speed control unit. The dosing quantity results from: “Gang volume” times the number of screw revolutions per dosing process. The screw revolutions are freely adjustable.
The dosing unit is equipped with a “cross screw” that conveys the product from a product feed or a storage container into the dosing hopper, thus decoupling the filling process from product fluctuations in the storage area. The filling level in the dosing hopper is kept constant by a level detection system.
Performance characteristics
| Dosing range | from 0.5 ml up to 1000 ml |
| Application | up to 120 dosages/min |
| Electr. connected wattage | approx. 0.37KW per lane |
| Voltage supply standard | 400V/3/N/PE/50Hz |
| Protection class | IP 54 |
| Weight | approx. 45 kg |
| Colour standard | stainless steel - alu |
Technical details
- Built in a modular system
- Compact, robust, durable construction
- For screws from Ø8 to max. Ø30 mm.
- All parts that come into contact with the product are made of stainless steel or another approved material
- Stepless electromechanical drive
- Quick format change
- User-friendly
- Low maintenance
- Quick and easy cleaning
- The dosing unit complies with the current CE directives
Options
- Trend control in combination with a scale
- Aeration and fumigation systems
- Special dosing screw sets
- various screw termination systems
- e.g. throwing plate design for free-flowing products
